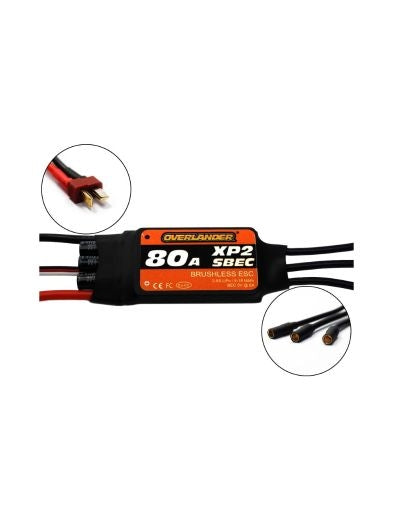

Overlander 2720 XP2 SBEC Brushless Speed Controller 80A with Deans Connectors Flight
The Overlander XP2 80A SBEC Brushless Speed Controller is a robust and high-performance ESC designed for RC aircraft enthusiasts. Fully compatible with Overlander’s Tornado Thumper V3 motors, including models 5045/10, 5055/06, 5065/08, and 6354/16, it ensures seamless integration for optimal performance.
Available in both bare-lead and Ready-to-Fly (RTF) options, the RTF configurations include either Deans or XT60 connectors for the battery and 4mm gold connectors for the motor, providing flexibility and quick installation. With a continuous current capacity of 80A and a burst current of 100A, this ESC is ideal for large sport planes, powerful aerobatic aircraft and heavy-duty electric gliders that demand consistent and reliable power.
The built-in SBEC offers a steady 5V or 6V output at 5A, efficiently powering servos and receivers without overloading your main battery. Measuring 86mm x 38mm x 12mm and weighing 76.1g, the XP2 80A ESC supports 2-6S LiPo batteries, providing exceptional versatility for a wide range of setups. Customisable settings can be fine-tuned using the Overlander XP2 Program Card, ensuring optimal performance tailored to your aircraft’s needs.
Specifications:
SKU | 2720 | ||
---|---|---|---|
Barcode | 5060386115632 | ||
Ready-To-Fly (RTF) | Yes | ||
Connectors to Motor | 4mm Gold | ||
Connectors to Battery | Deans | ||
Constant Amps | 80A | ||
Burst Amps | 100A | ||
BEC Output | 5A | ||
LiPo Voltage Range | 2 - 6S | ||
NiMH Voltage Range | 5 - 18S | ||
Switching BEC | Yes | ||
Red & Black Wire Gauge | 12AWG | ||
Motor Wire Gauge | 14AWG | ||
Length (mm) | 86 | ||
Width (mm) | 38 | ||
Depth (mm) | 12 | ||
Weight (g) | 76.1 |
