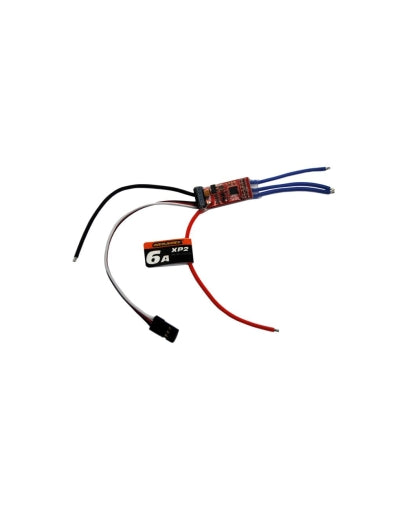

Overlander 2606 XP2 Brushless Speed Controller 6A Flight
The Overlander XP2 6A Brushless Speed Controller is engineered for optimal performance with Tornado Thumper V3 motors. Its compact dimensions of 32mm x 12mm x 4.5mm and lightweight design at 5.5g make it ideal for ultra-light and low-power RC aircraft models, such as micro indoor flyers, small park flyers, micro electric gliders and foam aircraft.
The ESC supports a 2S LiPo voltage range, providing efficient power management for your setup. With adjustable parameters via the Overlander XP2 program card or your transmitter, it offers full protection features, including low voltage cut-off, overheat protection, throttle signal loss safeguards, start-up protection and self-check. The system automatically detects the throttle neutral point, ensuring precise control. Three timing modes and start force adjustments enhance compatibility with various motors, while the governor mode caters to helicopter applications. Additionally, it supports reverse motor direction for versatile configurations.
SKU | 2606 |
---|---|
Barcode | 5060386110552 |
Constant Amps | 6A |
Burst Amps | 8A |
BEC Output | 0.8A |
LiPo Voltage Range | 2S |
NiMH Voltage Range | 5 - 6S |
Switching BEC | No |
Red & Black Wire Gauge | 20AWG |
Motor Wire Gauge | 20AWG |
Ready-To-Fly (RTF) | No |
Length (mm) | 32 |
Width (mm) | 12 |
Depth (mm) | 4.5 |
Weight (g) | 5.5 |
