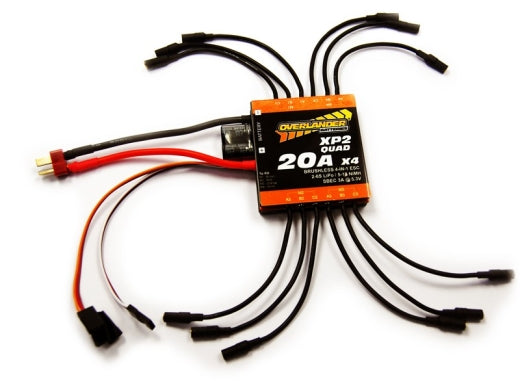

Overlander 2693 XP2 Quad Brushless Speed Controller 20A x 2 Flight
The Overlander XP2 QUAD 20A Brushless ESC is a high-performance electronic speed controller designed specifically for RC quadcopters. Combining four 20A ESCs into a single unit, it simplifies installation and enhances reliability. This ESC is compatible with 2-6 cell LiPo batteries and supports a continuous current of 20A per ESC, with burst currents up to 25A for 10 seconds, ensuring your quadcopter has the power needed for dynamic flight.
Measuring 60 x 72 x 12mm and weighing 100g, the XP2 QUAD 20A ESC is compact and lightweight, making it suitable for a variety of quadcopter frames. It features a built-in Battery Eliminator Circuit (BEC) providing 3A per ESC, ensuring consistent power to your receiver and servos. The ESC comes pre-fitted with a Deans connector for the battery and 3.2mm gold connectors for the motors, facilitating straightforward installation.
Specifications:
SKU | 2693 |
---|---|
Barcode | 5060386115366 |
Constant Amps | 20A |
Burst Amps | 25A |
BEC Output | 3A |
LiPo Voltage Range | 2 - 6S |
NiMH Voltage Range | 5 - 12S |
Switching BEC | No |
Red & Black Wire Gauge | 14AWG |
Motor Wire Gauge | 18AWG |
Ready-To-Fly (RTF) | Yes |
Connectors to Motor | 3.5mm Gold |
Connectors to Battery | Deans |
Dimensions | 60 x 72 x 12 (mm) |
Weight | 100 (g) |
