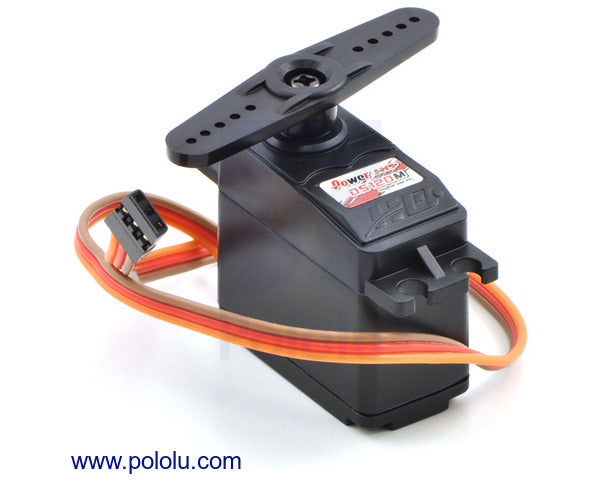

The DS120M digital servo from Power HD, a high-quality servo with digital control electronics for increased performance, is one of the fastest standard-size servos we carry, and it has plenty of torque, too. The output shaft is supported by two ball bearings, and all of the gears are metal for increased durability. Servo horns and associated hardware are included.
Key specs at 6 V: 0.11 sec/60°, 178 oz-in (12.8 kg-cm), 56 g
Torque 11.8/12.8 kg-cm
Speed 0.13/0.11 sec/60 degree
Voltage 4.8/6.0v
Weight 56.0g
Dimension 40.7 X 20,5 X 39,5mm
The HD-DS120M is a great high-performance, fast actuator with plenty of torque. Digital electronics coupled with all-metal gears and two ball bearings give this servo a distinct edge over similarly sized servos, especially if you need high speed and power. The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible.
